Metal Bellows

Type
Flange Size
Length

料號尺寸 (Dimension in mm)

料號:

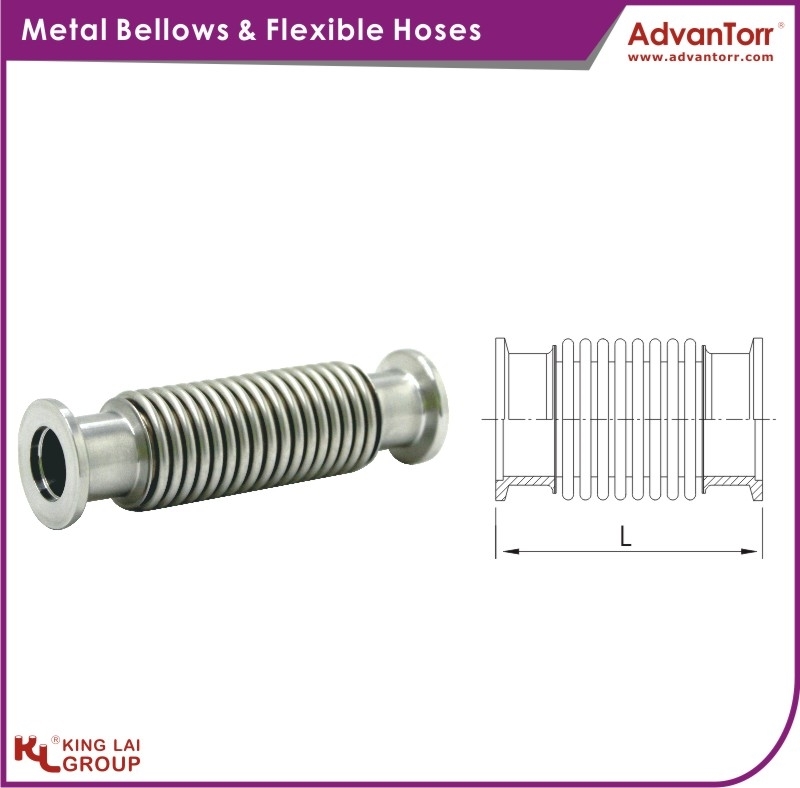

Type: Unbraided
Flange Size: KF16
Length: 100

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF16	28.5	20.1	0.15	3.5	100

料號:

Type: Unbraided
Flange Size: KF16
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF16	28.5	20.1	0.15	3.5	250

料號:

Type: Unbraided
Flange Size: KF16
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF16	28.5	20.1	0.15	3.5	500

料號:

Type: Unbraided
Flange Size: KF16
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF16	28.5	20.1	0.15	3.5	750

料號:

Type: Unbraided
Flange Size: KF16
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF16	28.5	20.1	0.15	3.5	1000

料號:

Type: Unbraided
Flange Size: KF25
Length: 100

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF25	36	25.1	0.15	4.3	100

料號:

Type: Unbraided
Flange Size: KF25
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF25	36	25.1	0.15	4.3	250

料號:

Type: Unbraided
Flange Size: KF25
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF25	36	25.1	0.15	4.3	500

料號:

Type: Unbraided
Flange Size: KF25
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF25	36	25.1	0.15	4.3	750

料號:

Type: Unbraided
Flange Size: KF25
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF25	36	25.1	0.15	4.3	1000

料號:

Type: Unbraided
Flange Size: KF40
Length: 100

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF40	54	38	0.15	5	100

料號:

Type: Unbraided
Flange Size: KF40
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF40	54	38	0.15	5	250

料號:

Type: Unbraided
Flange Size: KF40
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF40	54	38	0.15	5	500

料號:

Type: Unbraided
Flange Size: KF40
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF40	54	38	0.15	5	750

料號:

Type: Unbraided
Flange Size: KF40
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF40	54	38	0.15	5	1000

料號:

Type: Unbraided
Flange Size: KF50
Length: 100

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF50	68	50.1	0.15	6	100

料號:

Type: Unbraided
Flange Size: KF50
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF50	68	50.1	0.15	6	250

料號:

Type: Unbraided
Flange Size: KF50
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF50	68	50.1	0.15	6	500

料號:

Type: Unbraided
Flange Size: KF50
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF50	68	50.1	0.15	6	750

料號:

Type: Unbraided
Flange Size: KF50
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
KF50	68	50.1	0.15	6	1000

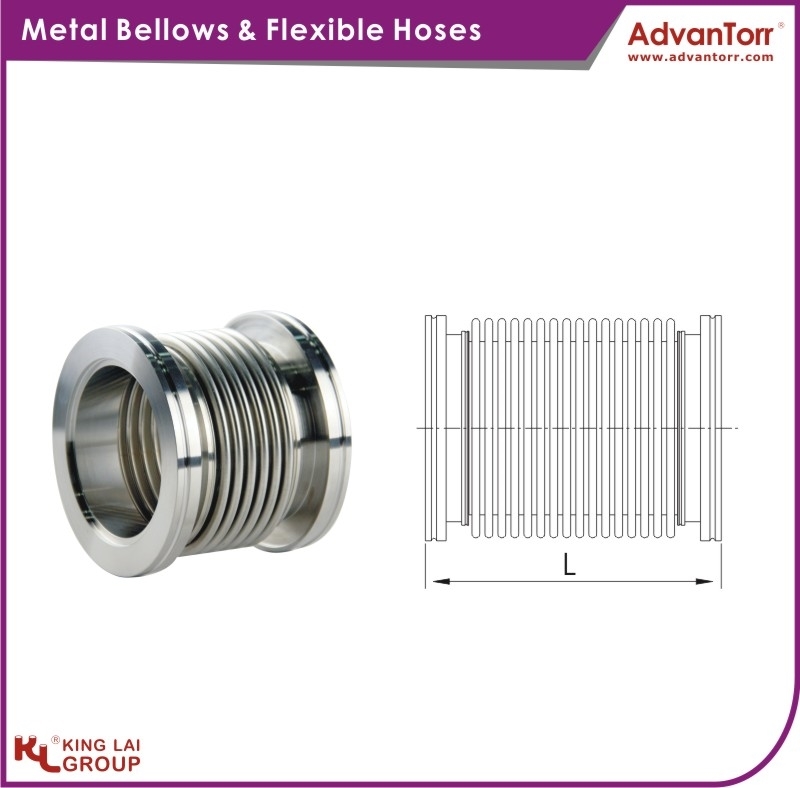

料號:

Type: Unbraided
Flange Size: ISO-K 63
Length: 100

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO63	85	65.2	0.2	6.5	100

料號:

Type: Unbraided
Flange Size: ISO-K 63
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO63	85	65.2	0.2	6.5	250

料號:

Type: Unbraided
Flange Size: ISO-K 63
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO63	85	65.2	0.2	6.5	500

料號:

Type: Unbraided
Flange Size: ISO-K 63
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO63	85	65.2	0.2	6.5	750

料號:

Type: Unbraided
Flange Size: ISO-K 63
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO63	85	65.2	0.2	6.5	1000

料號:

Type: Unbraided
Flange Size: ISO-K 80
Length: 100

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO80	101	78	0.2	7	100

料號:

Type: Unbraided
Flange Size: ISO-K 80
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO80	101	78	0.2	7	250

料號:

Type: Unbraided
Flange Size: ISO-K 80
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO80	101	78	0.2	7	500

料號:

Type: Unbraided
Flange Size: ISO-K 80
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO80	101	78	0.2	7	750

料號:

Type: Unbraided
Flange Size: ISO-K 80
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO80	101	78	0.2	7	1000

料號:

Type: Unbraided
Flange Size: ISO-K 100
Length: 100

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO100	127	100	0.25	7.5	100

料號:

Type: Unbraided
Flange Size: ISO-K 100
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO100	127	100	0.25	7.5	250

料號:

Type: Unbraided
Flange Size: ISO-K 100
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO100	127	100	0.25	7.5	500

料號:

Type: Unbraided
Flange Size: ISO-K 100
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO100	127	100	0.25	7.5	750

料號:

Type: Unbraided
Flange Size: ISO-K 100
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO100	127	100	0.25	7.5	1000

料號:

Type: Unbraided
Flange Size: ISO-K 160
Length: 100

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO160	175.5	149.7	0.25	8	100

料號:

Type: Unbraided
Flange Size: ISO-K 160
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO160	175.5	149.7	0.25	8	250

料號:

Type: Unbraided
Flange Size: ISO-K 160
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO160	175.5	149.7	0.25	8	500

料號:

Type: Unbraided
Flange Size: ISO-K 160
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO160	175.5	149.7	0.25	8	750

料號:

Type: Unbraided
Flange Size: ISO-K 160
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
ISO160	175.5	149.7	0.25	8	1000

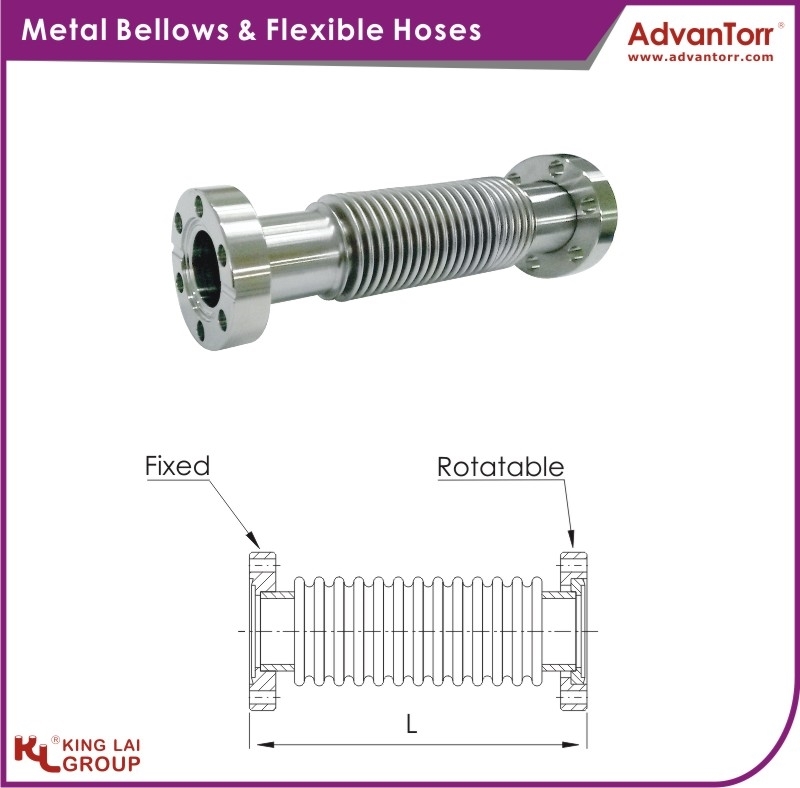

料號:

Type: Unbraided
Flange Size: CF1.33" (DN16)
Length: 82

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
CF1.33"(DN16)	28.5	20.1	0.15	3.5	82

料號:

Type: Unbraided
Flange Size: CF2.12" (DN25)
Length: 82

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
CF2.12"(DN25)	36	25.1	0.15	4.3	82

料號:

Type: Unbraided
Flange Size: CF2.75" (DN40)
Length: 82

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
CF2.75"(DN40)	54	38	0.15	5	82

料號:

Type: Unbraided
Flange Size: CF3.38" (DN50)
Length: 178

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
CF3.38"(DN50)	68	50.1	0.15	6	82

料號:

Type: Unbraided
Flange Size: CF4.50" (DN63)
Length: 178

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
CF4.50"(DN63)	85	65.2	0.2	6.5	178

料號:

Type: Unbraided
Flange Size: CF4.62" (DN80)
Length: 178

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
CF4.62"(DN80)	101	78	0.2	7	178

料號:

Type: Unbraided
Flange Size: CF6.00" (DN100)
Length: 178

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
CF6.00"(DN100)	127	100	0.25	7.5	178

料號:

Type: Unbraided
Flange Size: CF8.00" (DN160)
Length: 178

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	Pitch	L
CF8.00"(DN160)	175.5	149.7	0.25	8	178

料號:

Type: Braided
Flange Size: KF16
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF16	20	30.5	0.25	250

料號:

Type: Braided
Flange Size: KF16
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF16	20	30.5	0.25	500

料號:

Type: Braided
Flange Size: KF16
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF16	20	30.5	0.25	750

料號:

Type: Braided
Flange Size: KF16
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF16	20	30.5	0.25	1000

料號:

Type: Braided
Flange Size: KF25
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF25	25	37.5	0.25	250

料號:

Type: Braided
Flange Size: KF25
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF25	25	37.5	0.25	500

料號:

Type: Braided
Flange Size: KF25
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF25	25	37.5	0.25	750

料號:

Type: Braided
Flange Size: KF25
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF25	25	37.5	0.25	1000

料號:

Type: Braided
Flange Size: KF40
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF40	37.5	55.5	0.25	250

料號:

Type: Braided
Flange Size: KF40
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF40	37.5	55.5	0.25	500

料號:

Type: Braided
Flange Size: KF40
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF40	37.5	55.5	0.25	750

料號:

Type: Braided
Flange Size: KF40
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF40	37.5	55.5	0.25	1000

料號:

Type: Braided
Flange Size: KF50
Length: 250

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF50	49.8	67.5	0.25	250

料號:

Type: Braided
Flange Size: KF50
Length: 500

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF50	49.8	67.5	0.25	500

料號:

Type: Braided
Flange Size: KF50
Length: 750

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF50	49.8	67.5	0.25	750

料號:

Type: Braided
Flange Size: KF50
Length: 1000

Flange Size	OD (mm)	ID (mm)	Wall Thickness (mm)	L
KF50	49.8	67.5	0.25	1000
