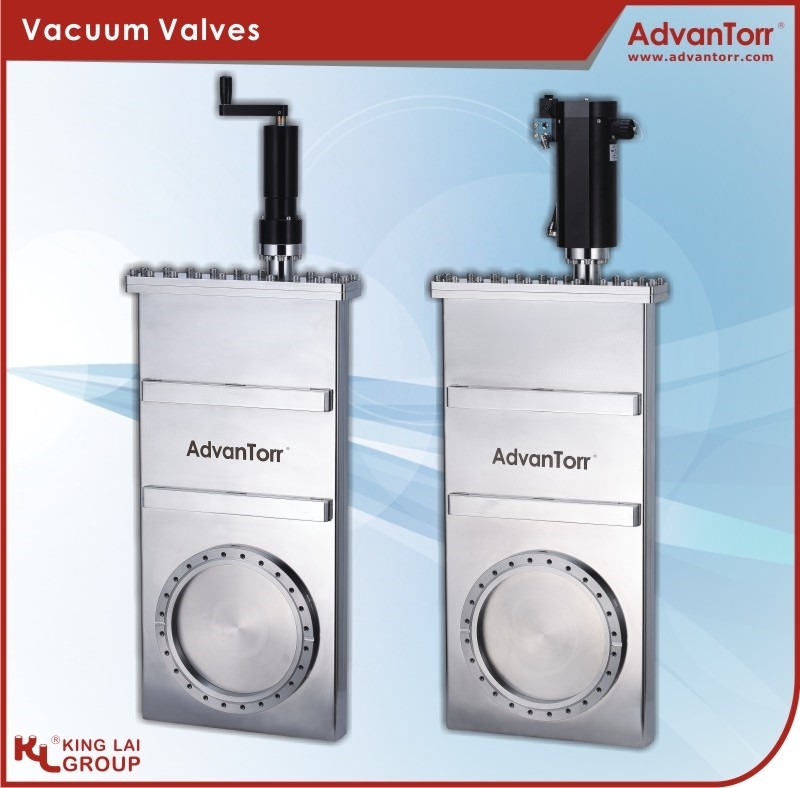

In-Axis Gate Valves

Actuator
Vacuum Grade
Flange Size
Thread Type

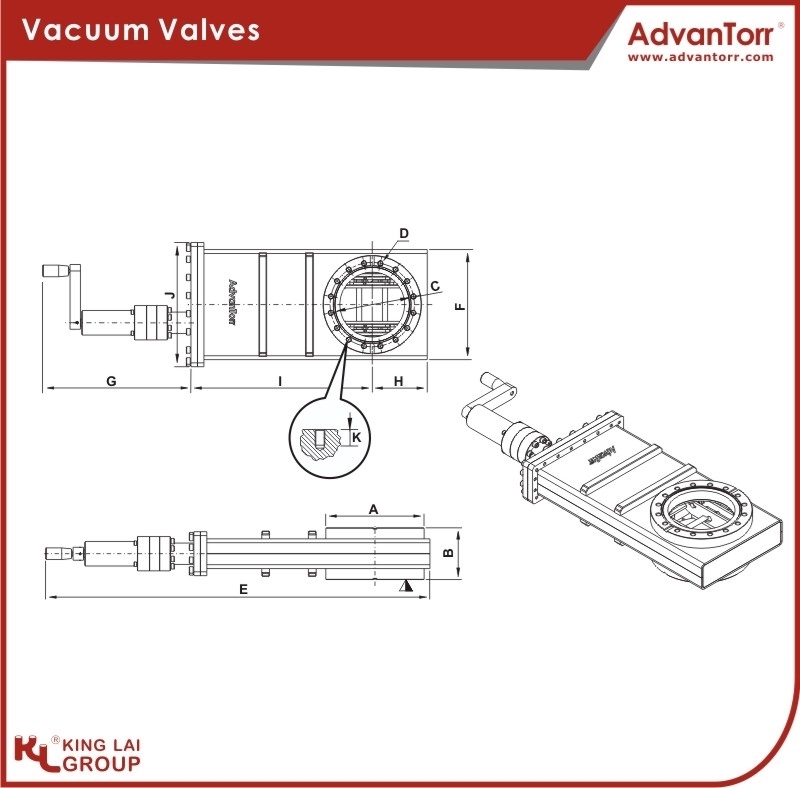

料號尺寸 (Dimension in mm)

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF4.50" (DN63)
Thread Type: Inch

A	B	C	Thread D	E	F	G	H	I	J	K
114	70	92	8x5/16-24	530	142	231	71	228	164	12

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF6.00" (DN100)
Thread Type: Inch

A	B	C	Thread D	E	F	G	H	I	J	K
152	70	130	16x5/16-24	594	170	229	85	280	192	12

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF8.00" (DN160)
Thread Type: Inch

A	B	C	Thread D	E	F	G	H	I	J	K
202	70	181	20x5/16-24	758	234	263	117	378	266	10

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF10.00" (DN200)
Thread Type: Inch

A	B	C	Thread D	E	F	G	H	I	J	K
253	80	232	24x5/16-24	961	316	282	158	521	344	15

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF12.00" (DN250)
Thread Type: Inch

A	B	C	Thread D	E	F	G	H	I	J	K
304	100	284	32x5/16-24	1142	368	356	184	603	402	18

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF4.50" (DN63)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
114	70	92	8xM8	530	142	231	71	228	164	12

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF6.00" (DN100)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
152	70	130	16xM8	594	170	229	85	280	192	12

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF8.00" (DN160)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
202	70	181	20xM8	758	234	263	117	378	266	10

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF10.00" (DN200)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
253	80	232	24xM8	961	316	282	158	521	344	15

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF12.00" (DN250)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
304	100	284	32xM8	1142	368	356	184	603	402	18

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF4.50" (DN63)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
114	70	92	8xM8	495	142	196	71	228	154	12

料號:

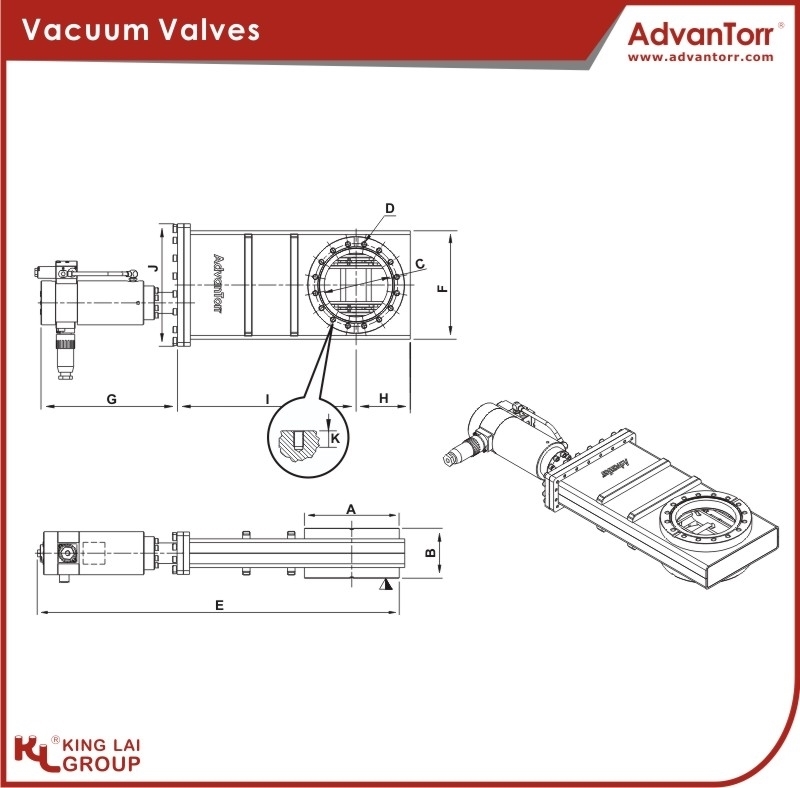

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF4.50" (DN63)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
114	70	92	8xM8	527	142	227	71	229	164	12

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF6.00" (DN100)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
152	70	130	16xM8	589	170	224	85	280	192	12

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF8.00" (DN160)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
202	70	181	20xM8	746	234	254	117	378	266	10

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF12.00" (DN250)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
304	100	284	32xM8	1131	368	345	184	602	402	18

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF4.50" (DN63)
Thread Type: Inch

A	B	C	Thread D	E	F	G	H	I	J	K
114	70	92	8x5/16-24	527	142	227	71	229	164	12

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF6.00" (DN100)
Thread Type: Inch

A	B	C	Thread D	E	F	G	H	I	J	K
152	70	130	16x5/16-24	589	170	224	85	280	192	12

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF8.00" (DN160)
Thread Type: Inch

A	B	C	Thread D	E	F	G	H	I	J	K
202	70	181	20x5/16-24	746	234	254	117	378	266	10

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF10.00" (DN200)
Thread Type: Inch

A	B	C	Thread D	E	F	G	H	I	J	K
253	80	253	24x5/16-24	948	316	269	158	521	344	15

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF12.00" (DN250)
Thread Type: Inch

A	B	C	Thread D	E	F	G	H	I	J	K
304	100	284	32x5/16-24	1131	368	345	184	602	402	18

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF4.50" (DN63)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
114	70	92	8xM8	492	142	192	71	228	154	12

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF6.00" (DN100)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
152	70	130	16xM8	555	170	188	85	282	182	12

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF8.00" (DN160)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
202	70	181	20xM8	746	234	253	117	376	250	10

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF10.00" (DN200)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
253	80	232	24xM8	927	316	250	158	519	334	15

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF12.00" (DN250)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
304	100	284	32xM8	1131	368	345	184	603	402	18

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-F 63
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
70	130	110	4xM8	491	142	192	71	228	154	12

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-F 100
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
70	165	145	8xM8	555	170	188	85	282	182	12

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-F 160
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
70	225	200	8xM10	746	234	253	117	376	250	10

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-F 200
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
80	285	260	12xM10	927	316	250	158	519	334	15

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-F 250
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
100	335	310	12xM10	1131	368	345	184	603	402	18

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF10.00" (DN200)
Thread Type: Metric

A	B	C	Thread D	E	F	G	H	I	J	K
253	80	232	24xM8	948	316	269	158	521	344	15
